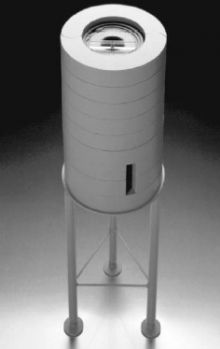

CRC-PS Positron Shield
[ click the picture ]


Constructed of sixteen 2 1/4" thick lead split rings for full shielding of a dose calibrator chamber. The positron shield gives maximum radiation protection when working with 511 KeV nuclides. The shield can either be flush mounted to a work surface or mounted on a table or cabinet.
FEATURES
- Rings are 2 3/8" thick lead.
- Lead contains 3% antimony for strength.
- Manufactured to fit all remote chamber dose calibrators except the CRC-15 BT.
SPECIFICATIONS
- 19" h with an outside diameter of 11 3/8"
- Weight: 518 lbs.
7300-2903 Positron Shield
